Vector 224 DTF printing system

Vector 224 DTF printing system

Regular price $17,995.00 USD
Regular price Sale price $17,995.00 USD
Sale Sold out

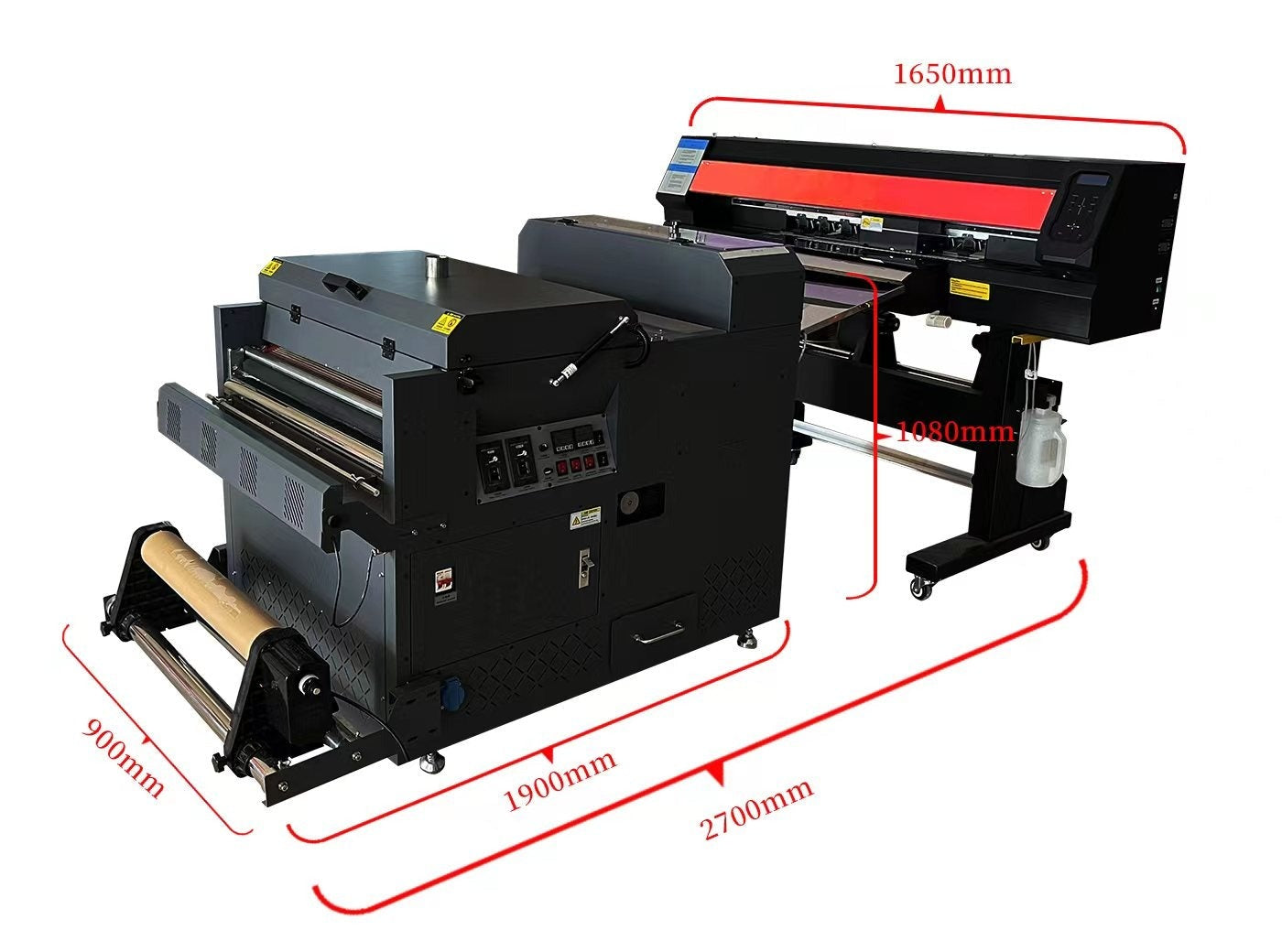

The Vector 224 DTF printing system is an automated print, powder and curing machine used to create direct to film transfers.

These transfers can be heat applied to many items including shirts, hats, shoes, bags, leather, wood, denim, canvas and much more.

Technical Specs:

  • 24" Maximum print width
  • Dual Epson i3200 Printheads (CMYK - WWWW)
  • 6 Pass and 8 Pass Print Resolution
  • Speed: 60+ 10"x10" prints per hour
  • 1 Liter per color ink bottle capacity
  • Easy access doors
  • Printer: 64" wide x 34" deep x 57" high
  • Dryer: 40" wide x 92" deep x 41" high
  • Estimated Entire Footprint for the Setup: 64" wide x 132" deep


What's Included:

  • Vector 224 Dual Head Printer  (Fully Assembled)
  • Vector Powder / Dryer (Fully Assembled)
  • Elexi RIP Software for PC
  • Optional Cadlink 11 RIP software available
  • 90 day Limited Warranty (Printheads are not covered under any circumstance)
  • Support

What's NOT Included:

  • PC: I5 or better CPU, 8 gb ram, 2 hard drives and a network adapter. 24" or larger monitor
  • Printhead Warranty


  •  A/C 220v 20amps Regulated L6-20 Style outlet. 2 Dedicated circuits (1 for printer and 1 for dryer)
  • Climate control set to 70-75 degrees and 40 - 60% humidity
  • Typical learning time is 6 - 20 hours over a period of 1 week.
  • Vent to the outside with exhaust fan.


Free training is available at our facility in Marlborough MA.
Customer is responsible for their own travel expenses.


Warranty Terms:
The Vector 224 printer and dryer bare bones set are covered by a limited warranty for a period of 90 days.

Printer comes with new genuine Epson printheads. These printheads are not covered under warranty or can not be claimed as DOA. Any printhead replacements needed will be paid for by the customer.

Printheads, dampers and capping station are not covered by the limited warranty.

Warranty covers the parts but not the shipping. Customer is responsible for payment of shipping charges both to get the part and to return the defective part. Local customers can pick up for free.

In cases that can't be resolved remotely by the customer with the help of tech support, the customer would be responsible for crating and shipping the printer back to our warehouse.

Warranty is for originally owner and non-transferable.

    Important Notes:

    • Do not book any print jobs or sell any services until you've received your printer and have learned how to use it.
    • General understanding of a graphic programs like Adobe Photoshop, Illustrator or Coreldraw is a must.
    • Basic computer skills are required.
    • There is a software, hardware and process learning curve. Please allow yourself time and supplies to master it.
    • Dryer must be vented to the outside. Fumes are harmful.


    Returns / Refunds:
    Printer and equipment sales are final.
    We do not accept returns or give refunds on printers once ink is installed.
    Printer issues must be resolved according to the terms of the warranty.

      View full details
